Design & Supply
Coordinated system requirements, route, structures, conductor and substation equipment.
Mwazimba 33kV line and 800kVA substation
Design, supply and construction of a complete MV connection supporting increased load capacity.
Project Overview
Extending reliable power to a growing CIP operation
KELM delivered a 3.54km, 33kV overhead line and a new 800kVA 33/0.4kV transformer substation for Nestory Makune's CIP operation. The design increased available capacity and supported reliable operation and future growth.
The project combined line structures, ACSR conductors, switchgear, transformer installation, earthing and lightning protection in one coordinated package.
- Client
- Nestory Makune (CIP)
- Programme
- February 2025 · June 2025
- Location
- Mwazimba, Shinyanga
- Line
- 3.54km of 33kV overhead infrastructure
- Substation
- 800kVA, 33/0.4kV transformer
What KELM Did
A complete line and substation solution
33kV Construction

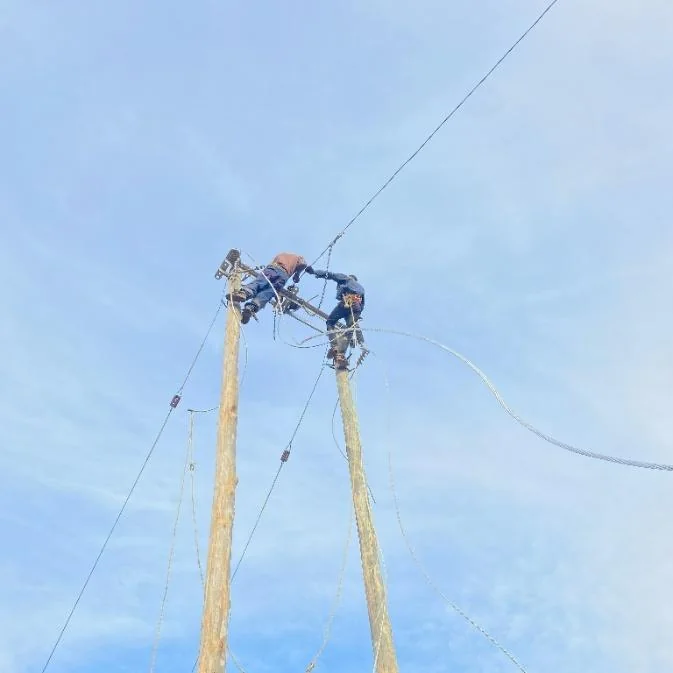

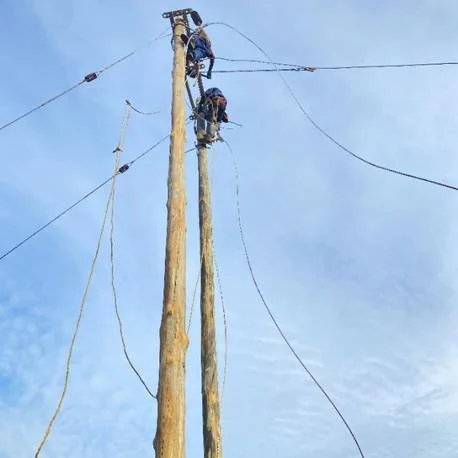

Installed line poles and strung ACSR conductors across the 3.54km route.
Substation & Switchgear

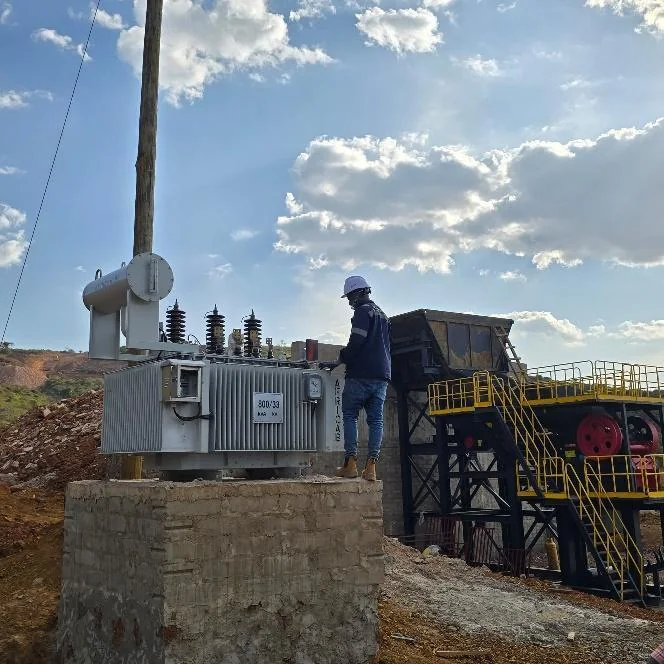

Installed the 800kVA transformer and switching equipment for control and fault isolation.
Safety Systems
Delivered the earthing and lightning protection required for personnel and asset safety.
Project Photos
Line and transformer installation
